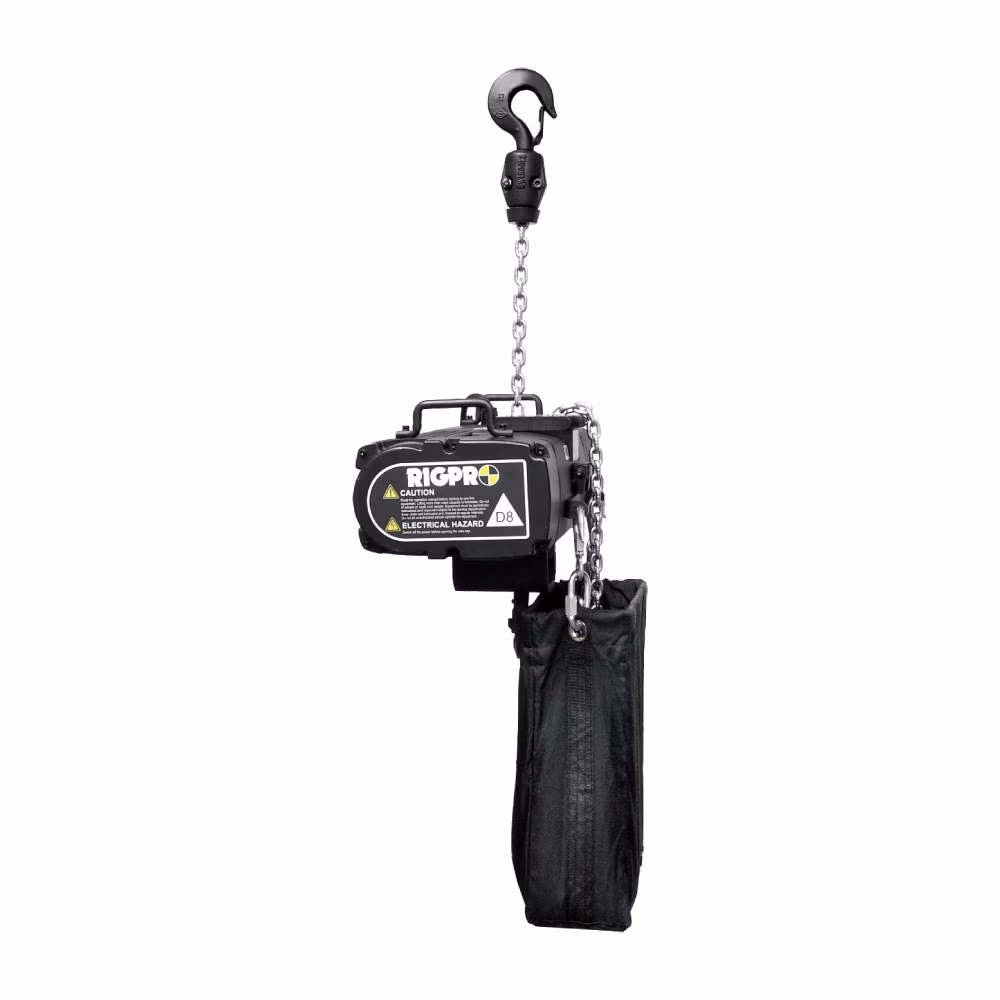

KUPO RIGGING RH-1000S4

$14,040.00

貨號: RH-1000S4
Avaibility : 件庫存
Category:
Share:

KUPO RIGGING RH-1000S4 Description Outstanding Features …

KUPO RIGGING RH-1000S4

Description

Outstanding Features:
– Gravity die-casted aluminum, matt-black non reflective finish chassis for rigid, light-weighted, durable and low visibility.
– Epoxy black powder coated chassis is featuring corrosionresistance, and with fine gasket and mechanical design, the complete unit turns to be IP54 rated.
– Enhanced Nylon chain leading plate ensures the chain links properly fit into the lift wheel, and eliminates the possibility of jamming, as well as protects the lift wheel from wet and dirt.

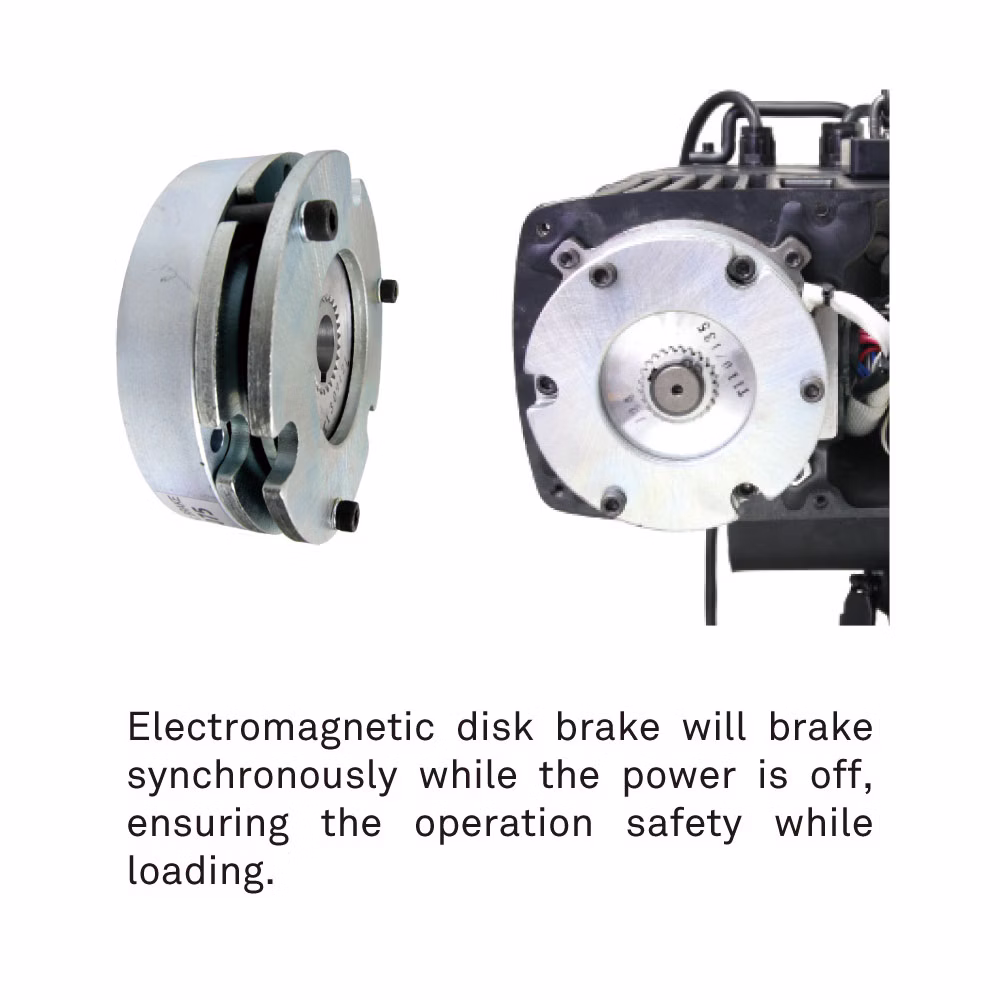

– Heavy-duty DC brake automatically gets engaged in the event of power failure, requiring very little maintenance and only minor periodic adjustments.

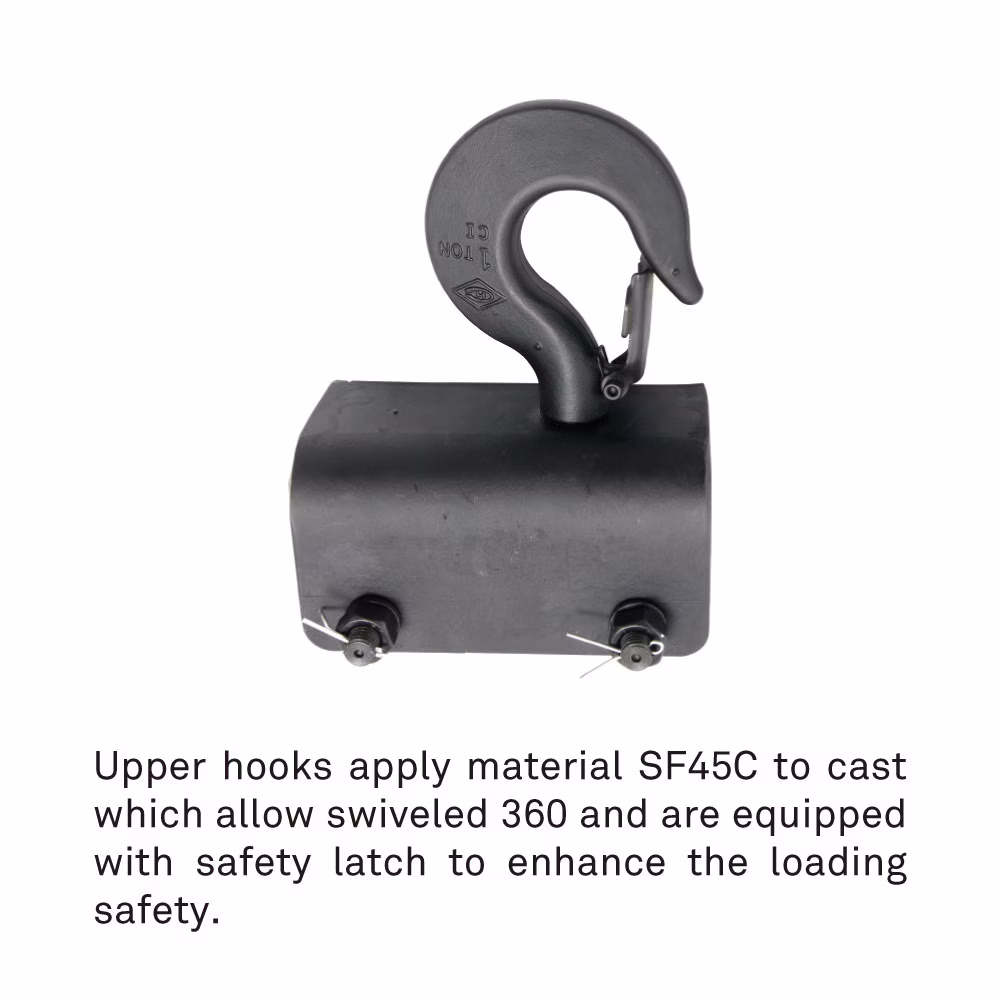

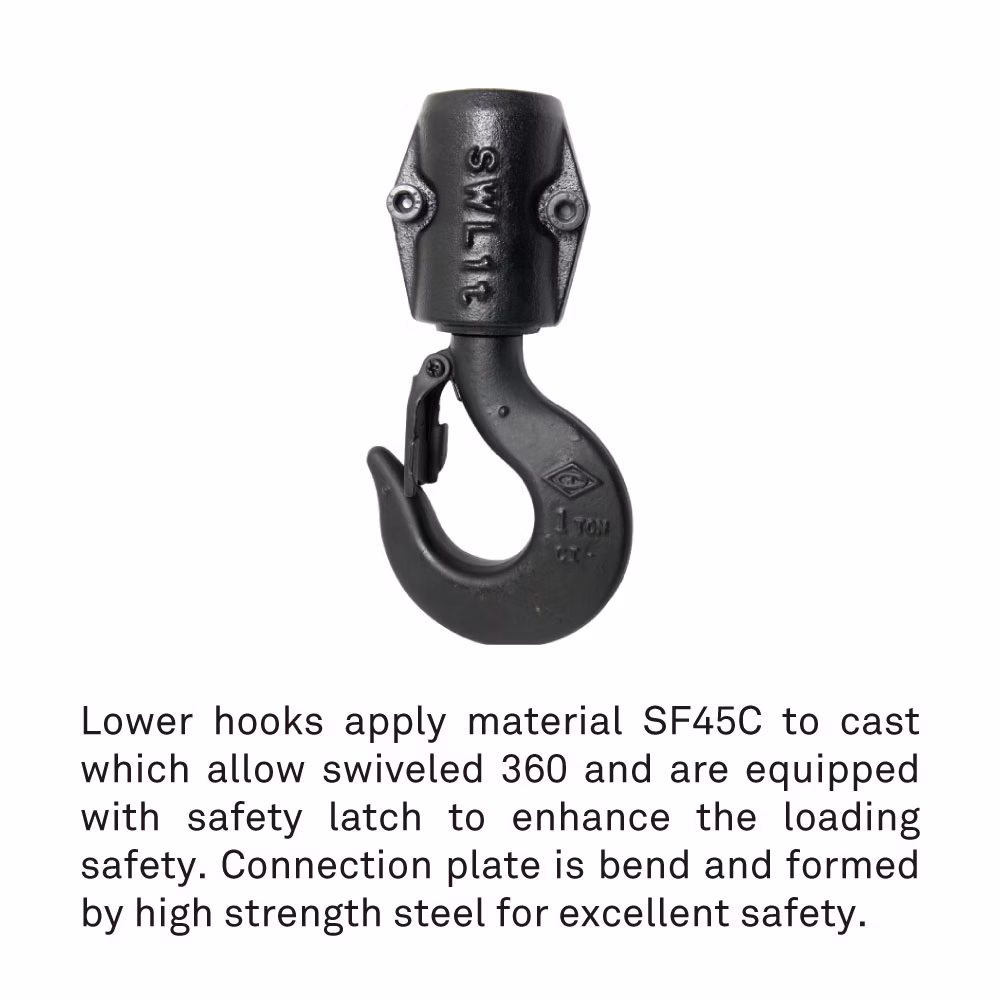

– Hook is made of drop-forged high tensile steel with heat treatment, allowing 360 degree swiveling, and equipped with safety latch to ensure proper rigging the load.
– Equipped with duty cycle ED 40% high efficiency, lightweight and robust motor, running the chain hoist quietly and steady.
– Operates on three phase voltage of 400V/50Hz, and LVC is 110V as standard. Other voltage for DC and LVC version is available upon request.
– Conforms to FEM 2m / ISO M5 classification, covering a wide range of applications.
– Average operational noise is within 75dB, quietly working and less noisy.



Capacity (kg)
Model
Speed (m/mim)
50Hz/60Hz
Fall No.
Load Chain (Dia x Picth)
(mm)
Motor
(kw x pole)
Weight of hoist
(kg)
1000 RH-1000LV 3.3 / 4.0 1 Ø 7.1 x 20.2 0.75 x 4 47
RH-1000LVP 4.0 / 4.8 1 Ø 7.1 x 20.2 0.75 x 4 47
RH-1000PS4 4.0 / 4.8 1 Ø 7.1 x 20.2 0.75 x 4 47
RH-1000S4 4.0 / 4.8 1 Ø 7.1 x 20.2 0.75 x 4 47
RH-1000PS8 8.0 / 9.6 1 Ø 7.1 x 20.2 0.75 x 4 47
RH-1000S8 8.0 / 9.6 1 Ø 7.1 x 20.2 0.75 x 4 47
Video

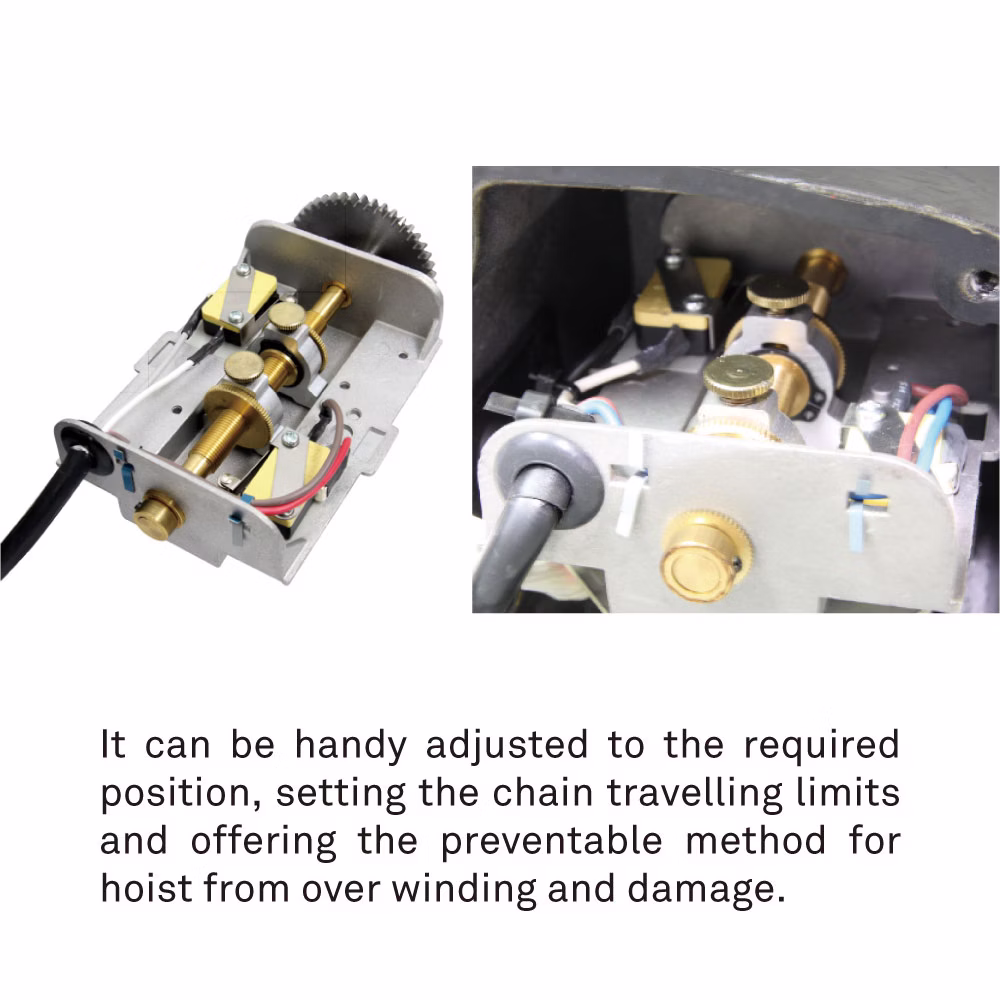

 New feature on Rigpro chain hoist—rubber block with micro switch positioning—sets the limit of hoist movement easiest ever. Grab and slide the rubber block to set the travel limit; no bother opening up the chassis, and it’s totally tool-free! A brand-new way to run the DC hoist that you shouldn’t miss out. See how it works or visit www.stage.com.tw for more details.
 RigPro electric chain hoist is built for rigorous entertainment rigging environment. The range confirms to industrial FEM 2m/ISO M5 classification as well as BGV D8 for event rigging category. It features durable, reliable, quite operation, user friendly and less maintenance.
 Rigpro offers a range of sophisticated controllers for direct control chain hoist, incorporating unique design for universal power input, sequence and phase monitoring, “go” link for synchronizing multi units and quick phase correction. All these outstanding features are crafted to cater to the needs in entertainment rigging. www.stage.com.tw
